气轻PyQt5 40 QChart多组柱状图(QBarSet)



使用了2018年和2017年的两组数据制作柱状图。



from PyQt5.QtGui import *

from PyQt5.QtCore import *

from PyQt5.QtWidgets import *

from PyQt5.QtChart import QBarSeries, QBarSet, QChart, QChartView, QValueAxis, QBarCategoryAxis

from math import ceil

import numpy as np

import sys



class PyQt540(QMainWindow):

    def __init__(self):

        super().__init__()

        self.initUI()



    def initUI(self):

        self.setWindowTitle("chart")

        self.resize(600, 400)                           # 设置窗口大小



        cityName = ['北京', '天津', '上海', '南京', '杭州', '青岛', '广州', '深圳', '重庆', '成都']

        yearData = ['2018', '2017'];

        gdpData=np.array([[30319.98, 28014.94],

                          [18809.64, 18549.19],

                          [32679.87, 30632.99],

                          [12820.40, 11715.10],

                          [13509.15, 12603.36],

                          [12001.52, 11037.28],

                          [22859.35, 21503.15],

                          [24221.98, 22490.06],

                          [20363.19, 19424.73],

                          [15342.77, 13889.39]])

        MaxGDP = ceil(gdpData.max()/9)*10



        chart = QChart()                                # 图表组件

        pen = QPen(QColor('#8B000'),3)                  # 曲线颜色

        chart.setTitle("部分城市GDP")

        barSeries = QBarSeries()                        # 竖向柱状图



        gdp = list(gdpData.transpose())

        barDict = dict.fromkeys(yearData)

        for i, value in enumerate(yearData):

            barDict[value] = QBarSet(value)             # 创建柱

            barDict[value].append(gdp[i])               # 添加数据

            barSeries.append(barDict[value])            # 添加到barSeries



        chart.addSeries(barSeries)



        axis_x = QBarCategoryAxis()                     # 柱状图坐标

        axis_x.append(cityName)



        axis_x.setTitleText("城市")

        axis_x.setLinePen(pen)                          # 设置X轴颜色和宽度

        chart.addAxis(axis_x, Qt.AlignBottom)



        axis_y = QValueAxis()

        axis_y.setLabelFormat("%d")

        axis_y.setRange(0, MaxGDP)

        axis_y.setTitleText("亿元")

        axis_y.setLinePen(pen)                          # 设置Y轴颜色和宽度

        chart.addAxis(axis_y, Qt.AlignLeft)



        chartView = QChartView()                        # 视图组件

        chartView.setChart(chart)                       # 显示chart

        chartView.setRenderHint(QPainter.Antialiasing)  # 增加抗锯齿



        self.setCentralWidget(chartView)



        self.show()



if __name__ == '__main__':

    app = QApplication(sys.argv)

    window = PyQt540()

    sys.exit(app.exec())

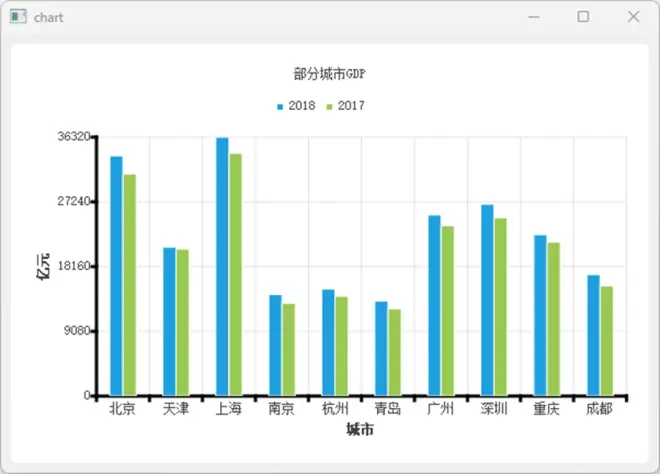

执行结果
