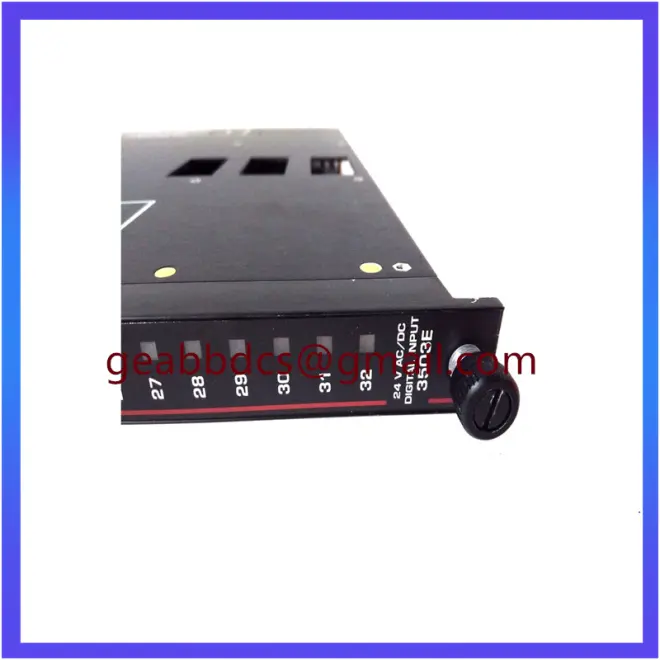

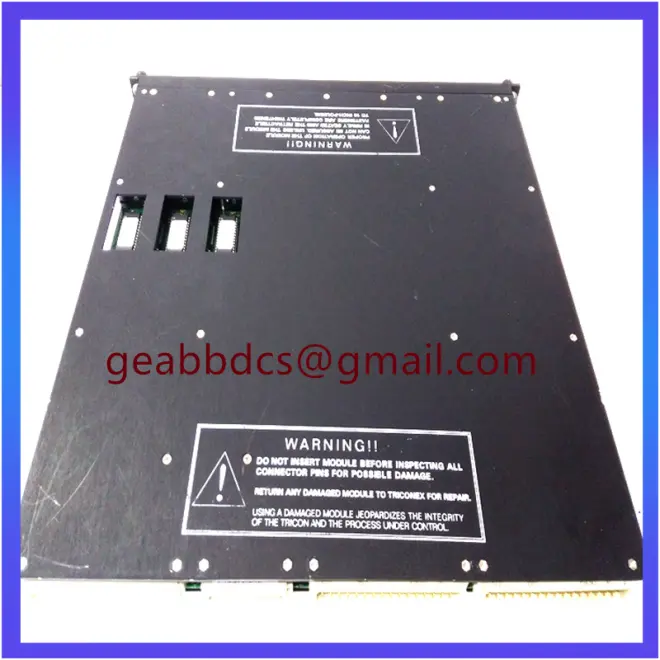

TRICONEX 3503E
标准主板设计用于8或16KF模块供电和系统
到DCS的连接器集成在主板中，这会产生明显的空间
节省了接口柜。电源采用冗余设计，增加了
系统的可靠性。监控并报告电源的运行状态
通过led和继电器输出。
KF模块通过使用2到6针编码电缆连接到主板上
连接器。（FSY…）主板配置安装在稳定的金属板上。那里
是两个支架，位于背面，用于将板快速轻松地安装到标准DIN导轨上
符合DIN EN 50022或类似标准
蚀刻了三个三重总线系统
在机箱背板上：TriBus，
I/O总线和通信总线。
TriBus由三个独立的串行链路组成，在25
兆比特每秒。三叉戟
在上同步主处理器
开始扫描。然后每个主管道
处理器将数据发送到其上游
以及下游邻居。三叉戟
使用执行两个功能之一
数据：
•仅用于I/O的数据传输，
诊断和通信数据。
•比较数据和
标记分歧-
对于上一次扫描
的输出数据和内存
用户编写的控件
程序
的一个重要特征
Tricon的容错体系结构是使用单个
发送数据的发送器
上游和下游主处理器。这
确保收到相同的
上游数据
处理器和下游
加工机
The standard motherboard is designed for 8 or 16KF modules Power feed and system
connector to DCS are integrated in the motherboard, which results in noticeable space
savings in the interface cabinet. The power source has a redundant design, increasing the
reliability of the system. The operating status of the power supply is monitored and reported
via led and relay output.
The KF modules are interfaced to the motherboard himself by using 2- to 6- pin coded cable
connectors.(FSY...) The motherboard configuration is mounted on a stable metal plate. There
are two brackets, on the back for mounting the board quickly and easily to a standard DIN rail
in accordance with DIN EN 50022 or similar
Three triplicated bus systems are etched
on the chassis backplane: the TriBus,
the I/O bus and the communication bus.
The TriBus consists of three independent serial links which operate at 25
megabits per second. The TriBus
synchronizes the main processors at the
beginning of a scan. Then each main
processor sends its data to its upstream
and downstream neighbors. The TriBus
performs one of two functions with the
data:
• Transfer of data only—for I/O,
diagnostic and communication data.
• Comparing data and
flagging disagreements—
for the previous scan’s
output data and memory of
user-written control
program.
An important feature of the
Tricon’s fault-tolerant architecture is the use of a single
transmitter to send data to
both the upstream and downstream main processors. This
ensures receipt of the same
data by the upstream
processor and downstream
processor.
