CJQ4407替代料SC014PG,P TO P替换CJQ4407，SOP8封装

CJQ4407替代料SC014PG,P TO P替换CJQ4407，SOP8封装

型号：SC014PG

N管

电压电流：-30V-12A

内阻：RDS(ON)<14mΩ@VGS=-10V

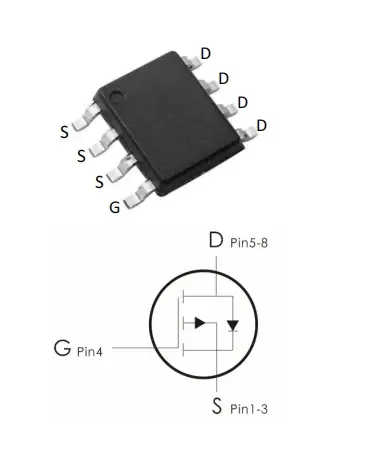

封装：SOP-8

Description：

This P-Channel MOSFET uses advanced trench technology and design to provide excellent RDS(on) with low gate charge.It can be used in a wide variety of applications.

Features：

1) VDS=-30V,ID=-12A,RDS(ON)<14mΩ@VGS=-10V

2) Low gate charge.

3) Green device available.

4) Advanced high cell denity trench technology for ultra Iow RDS(ON).

5) Excellent package for good heat dissipation.
